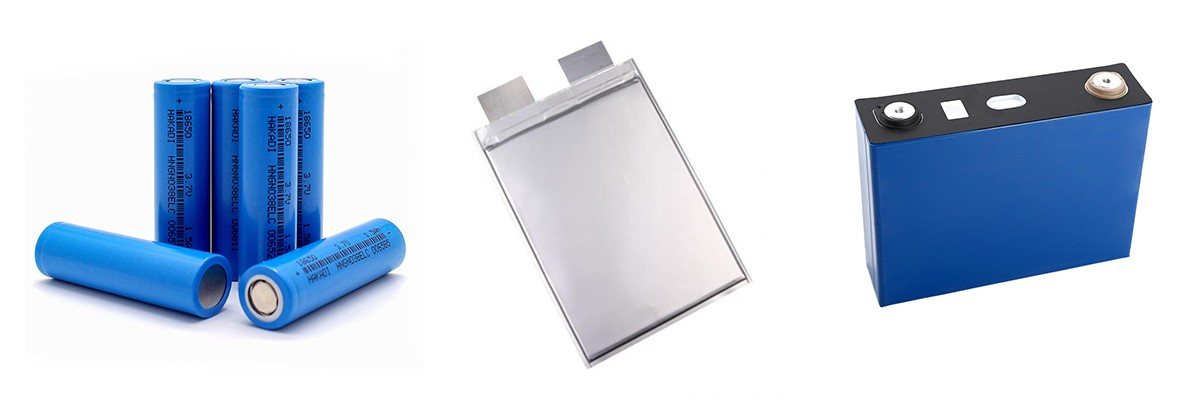

What it is
NMC packs more energy into the same weight than the alternatives, which is why long-range vehicles and most Western-built cars use it. The trade is cost, and dependence on nickel and cobalt.
The material bill
Scale it up →Quantities are per 75 kWh packindicative range
| Material | Low | High | Unit | Basis |
|---|---|---|---|---|
| Graphite critical Roughly 1 kg of anode material per kWh. | 50.00 | 80.00 | kg | Anode active material |
| Nickel critical NMC811 cathode is roughly 0.7 kg Ni per kWh. | 40.00 | 60.00 | kg | Contained nickel |
| Aluminium critical | 20.00 | 35.00 | kg | Cathode foil, cell cans and pack casing |
| Copper critical | 15.00 | 25.00 | kg | Foil and busbars, cell and pack only |
| Cobalt critical Falls sharply as cathodes move from NMC622 to NMC811. | 5.00 | 9.00 | kg | Contained cobalt |
| Lithium critical About 0.10 kg Li per kWh of cell capacity. | 6.00 | 9.00 | kg contained lithium | Contained metal, not carbonate |
| Manganese critical | 5.00 | 9.00 | kg | Contained manganese |
Indicative range compiled from published technology studies and chemistry; verify against a manufacturer specification before use. Rows marked “trace” contain the material in quantities too small to state usefully as a mass — the constraint there is purity or supplier count, not tonnage.
The alternatives
Substitution is the most underrated force in materials. When a metal gets expensive or politically difficult, engineers design around it — and demand for a whole mine can evaporate.

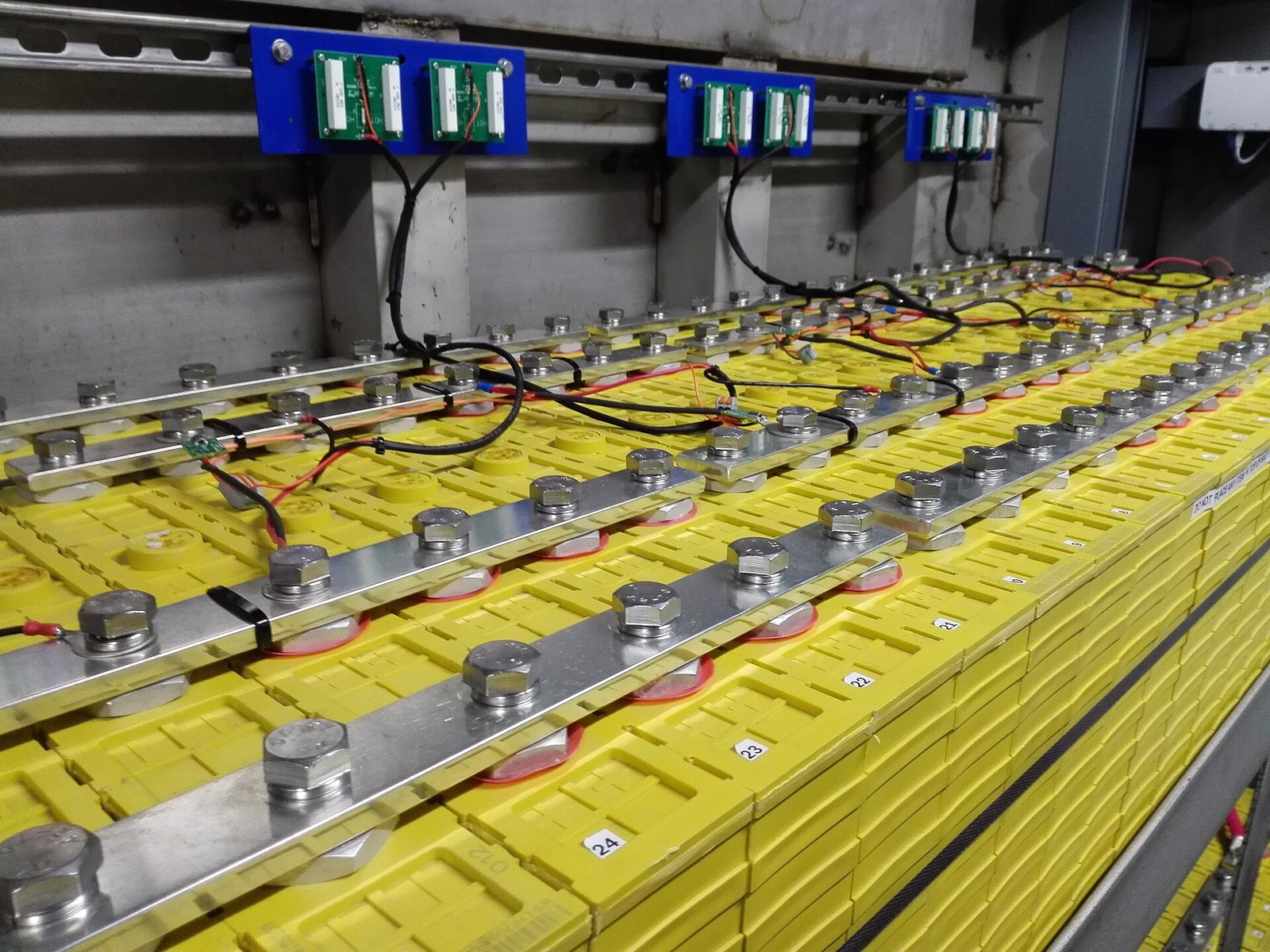

LFP Lithium-Ion Battery
Iron and phosphate instead of nickel and cobalt: heavier, cheaper, safer and very long-lived.

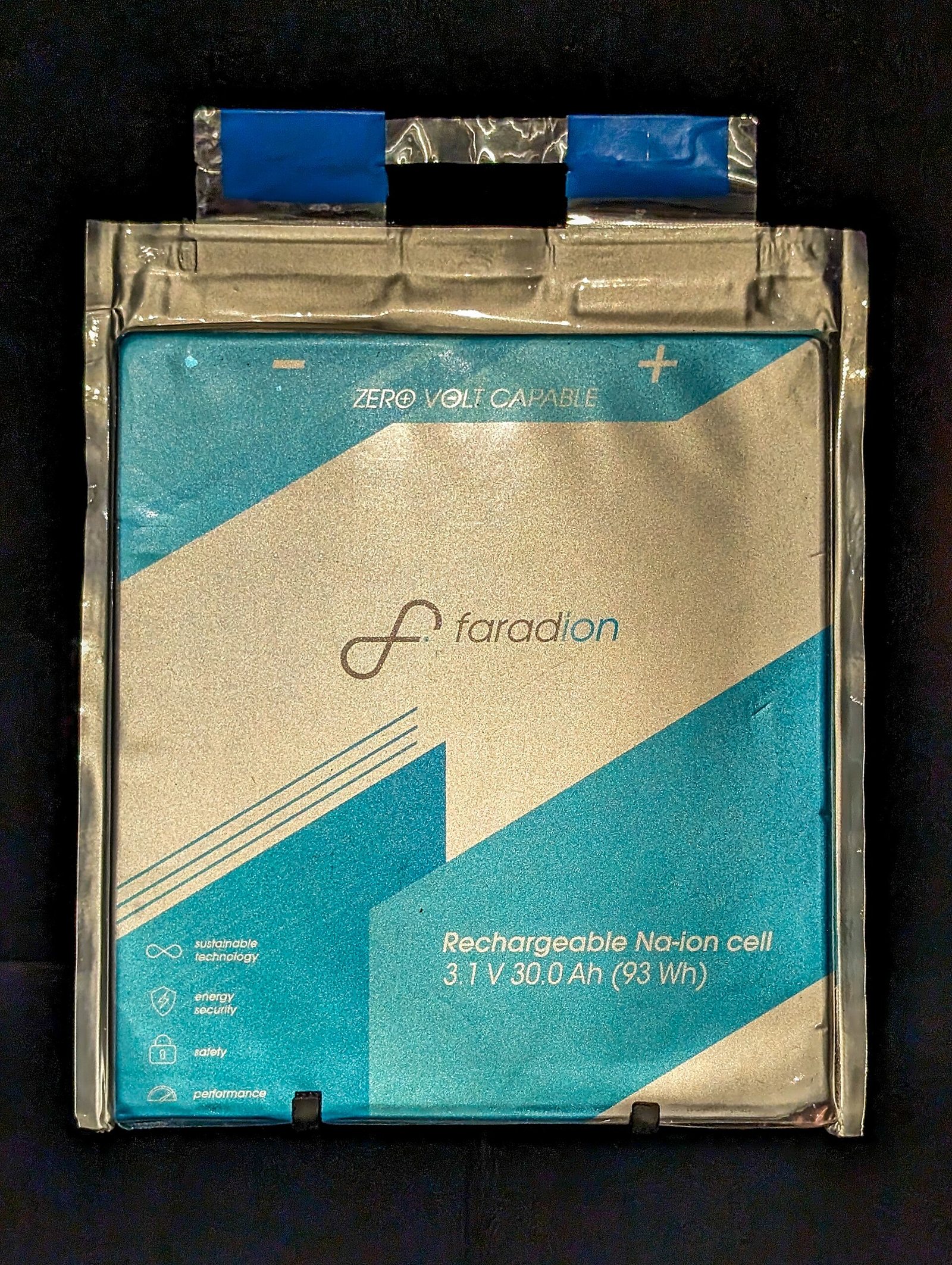

Sodium-Ion Battery
A cell that uses sodium — from ordinary salt — instead of lithium, at the cost of energy density.

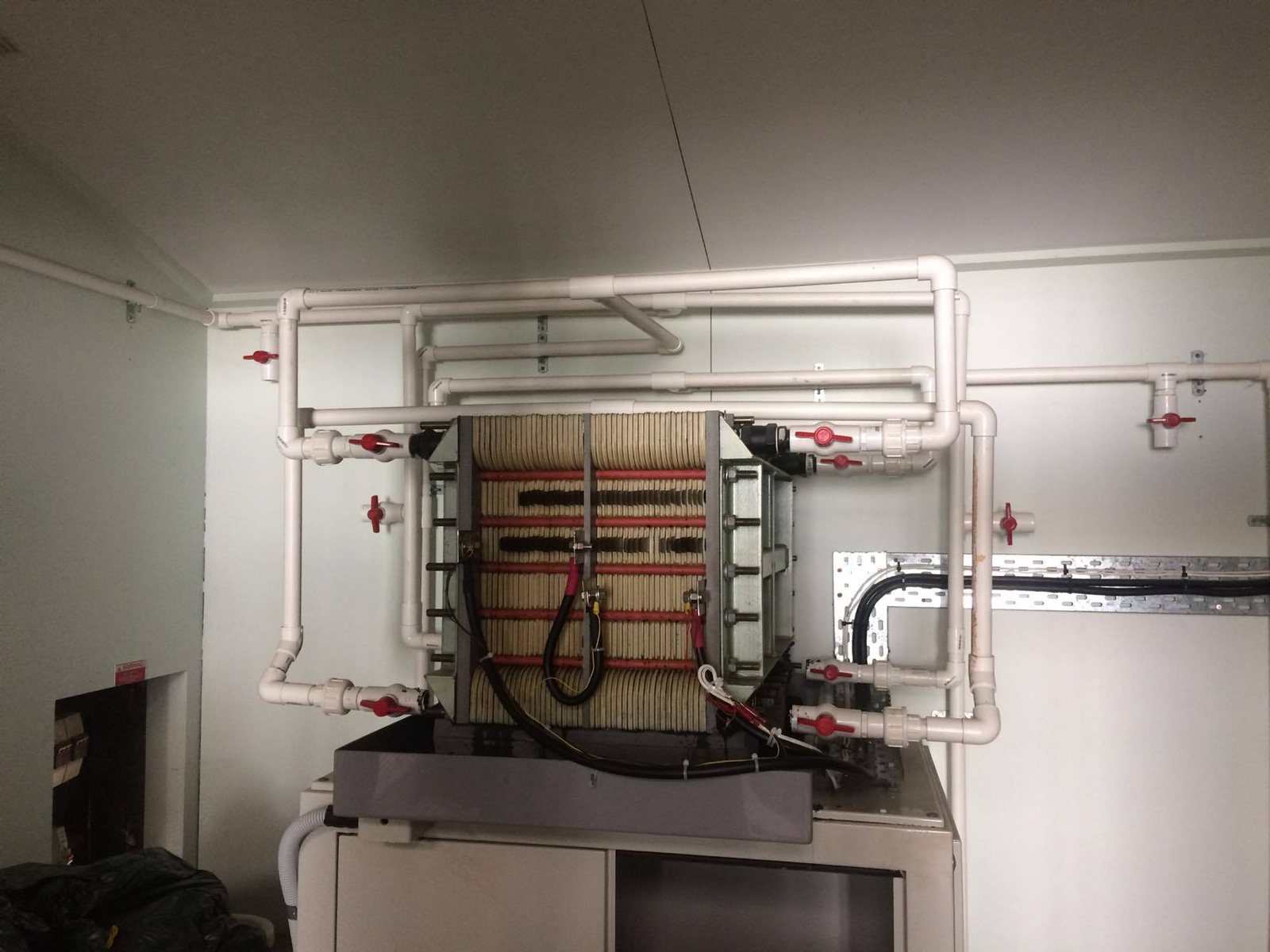

Vanadium Redox Flow Battery
A battery that stores its energy in two tanks of dissolved vanadium, so power and capacity scale separately.
