What is actually moving
Orinoco crude is barely a liquid. It has to be thinned before it can move, and then it has to reach one of the minority of refineries in the world with a coker deep enough to break it apart. That single physical fact decides which countries it can be sold to.
- The material
- Crude Oil
- The variety
- Extra-heavy crude, roughly 8–10° API, high sulfur, high vanadium and nickel
- Where it starts
- Venezuela — The Orinoco Belt, a 55,000 km² band of tar-saturated sand in eastern Venezuela
Step by step, and border by border
Venezuela · Orinoco Belt held by PDVSA and its joint ventures (State producer)

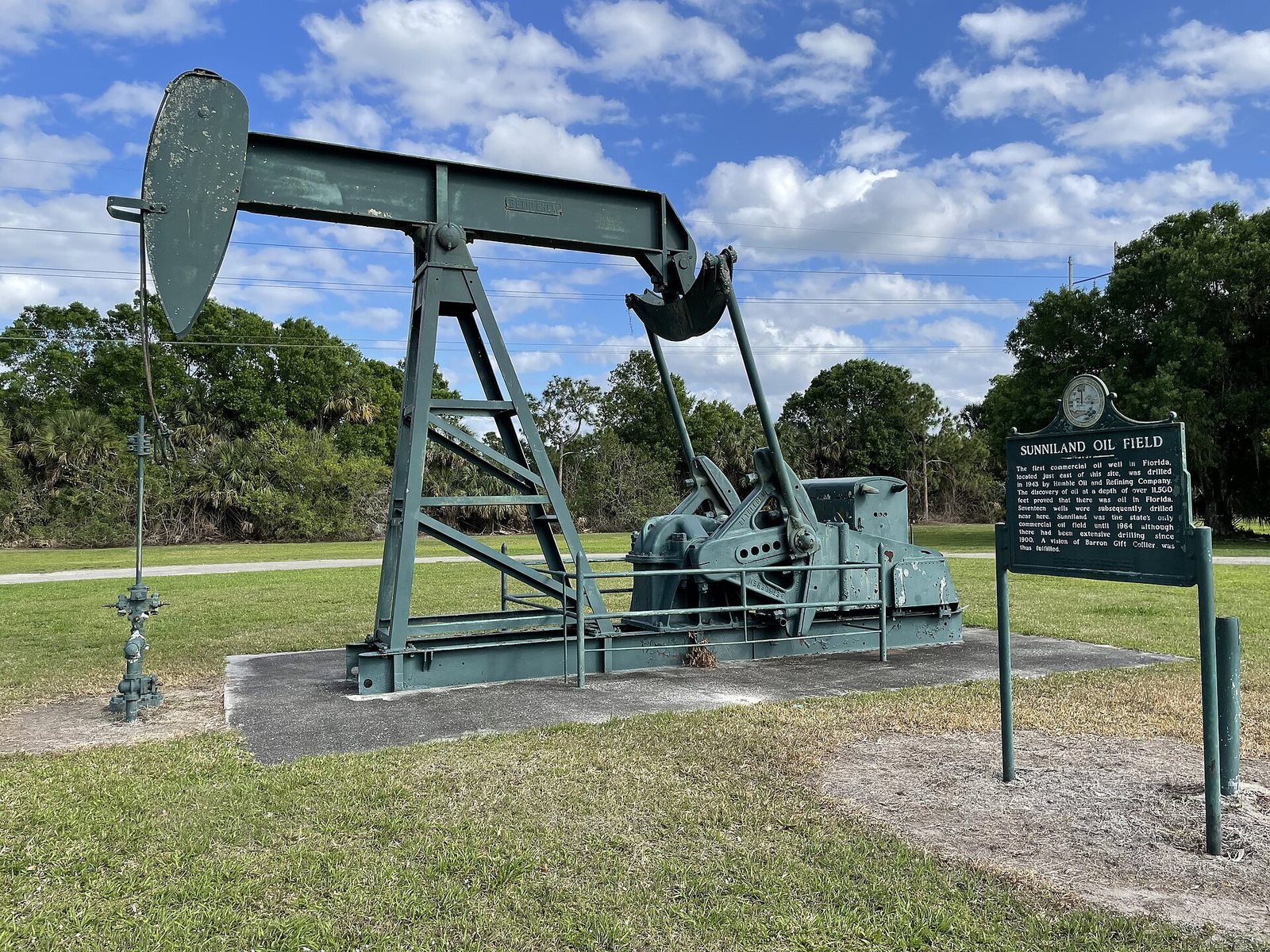

Getting it out of the sand
The crude is too viscous to flow to a well on its own. It is produced cold with progressive-cavity pumps in horizontal wells, or moved by injecting steam to heat it until it will run.
Why here: You cannot move an oilfield. Everything else in this journey is a consequence of where the Orinoco Belt happens to be.
Venezuela · Field gathering stations held by PDVSA (State producer)

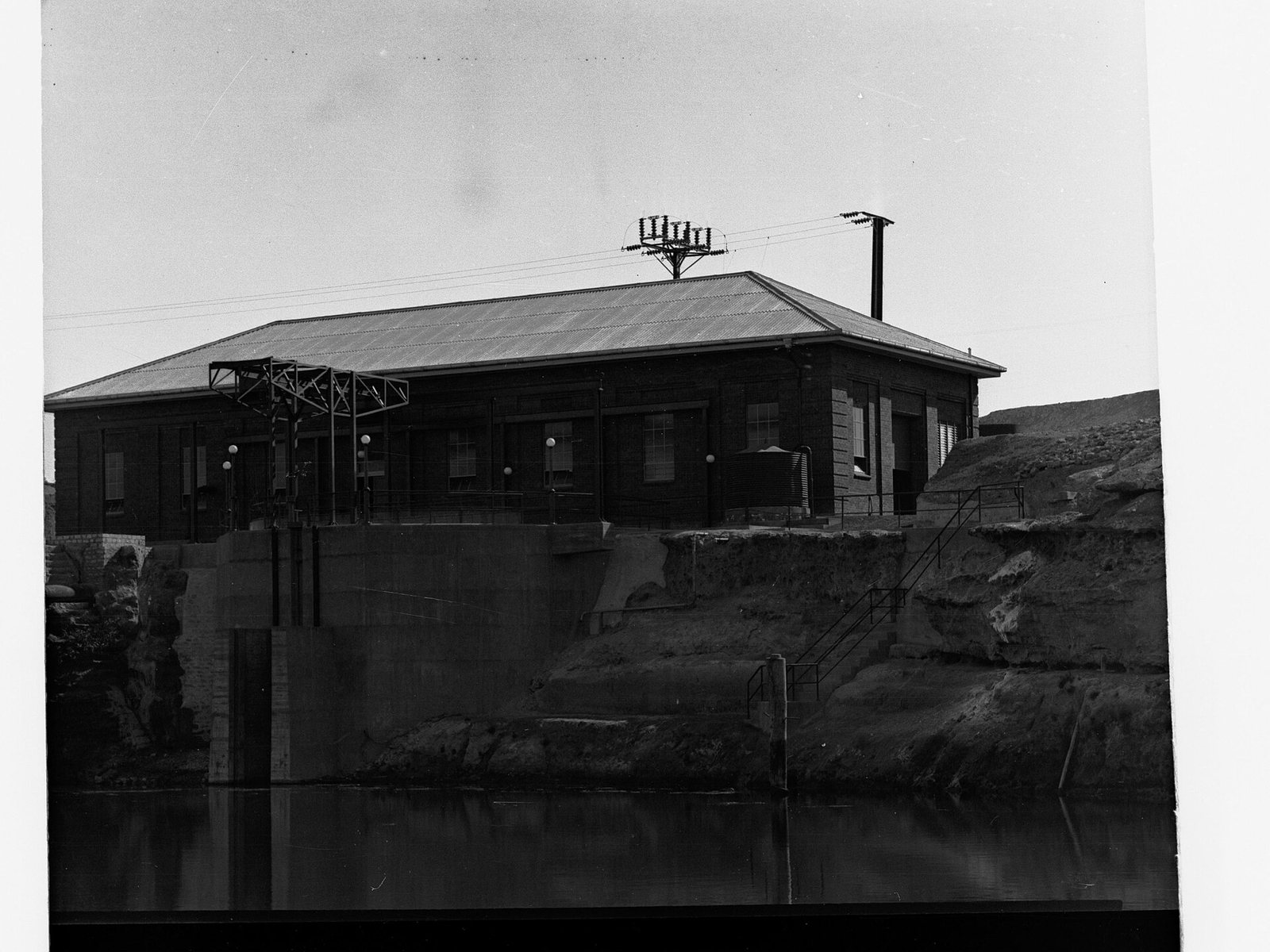

Thinning it enough to move
Naphtha or a lighter crude is blended in as a diluent, roughly one barrel in four, to bring the viscosity down far enough to pump. The result is a blend such as Merey, around 16° API.
What happened to the rest: Nothing is lost here — the volume goes UP, because a quarter of what now moves through the pipe is diluent that will have to be recovered later.
Why here: Dilution has to happen at the field. Without it there is no way to get the crude to a port at all.
Venezuela · José industrial complex, Anzoátegui held by PDVSA joint-venture upgraders (State producer)

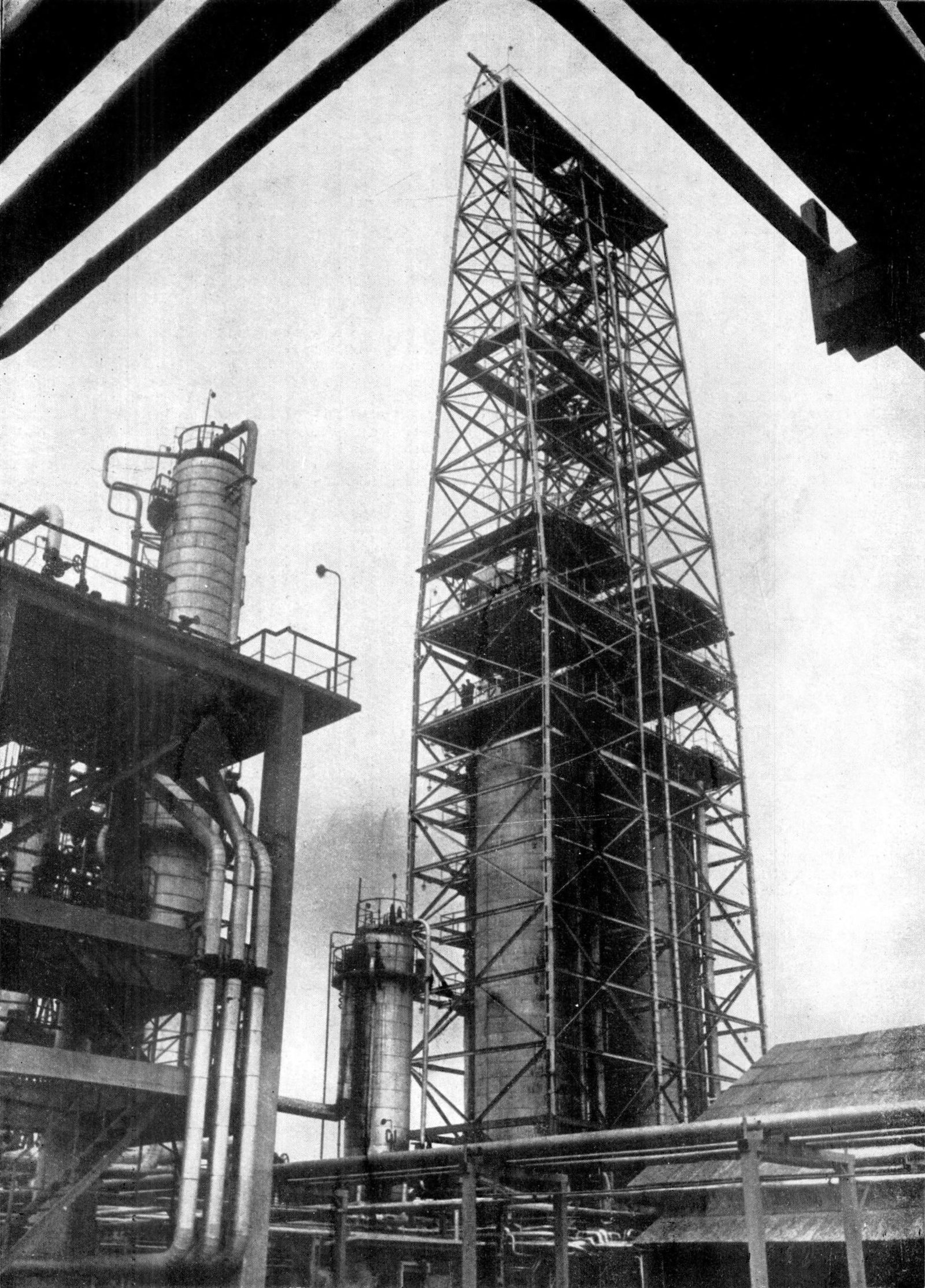

Upgrading, or not
Some of the blend goes through an upgrader on the coast, which cokes and hydrotreats it into a synthetic crude of about 26–32° API that any refinery can take. The rest is exported as blended heavy crude and stays somebody else's problem.
What happened to the rest: Upgrading at home captures the value of conversion in Venezuela. Exporting the blend hands that value to whoever owns the coker abroad. This is the single biggest commercial decision in the whole journey.
Why here: Upgrading next to the field avoids shipping diluent back and forth, but it needs enormous, reliable capital investment — which is why the capacity that exists has often run far below its design rate.
Venezuela · José and Amuay terminals held by Shipowners and traders (Trader)

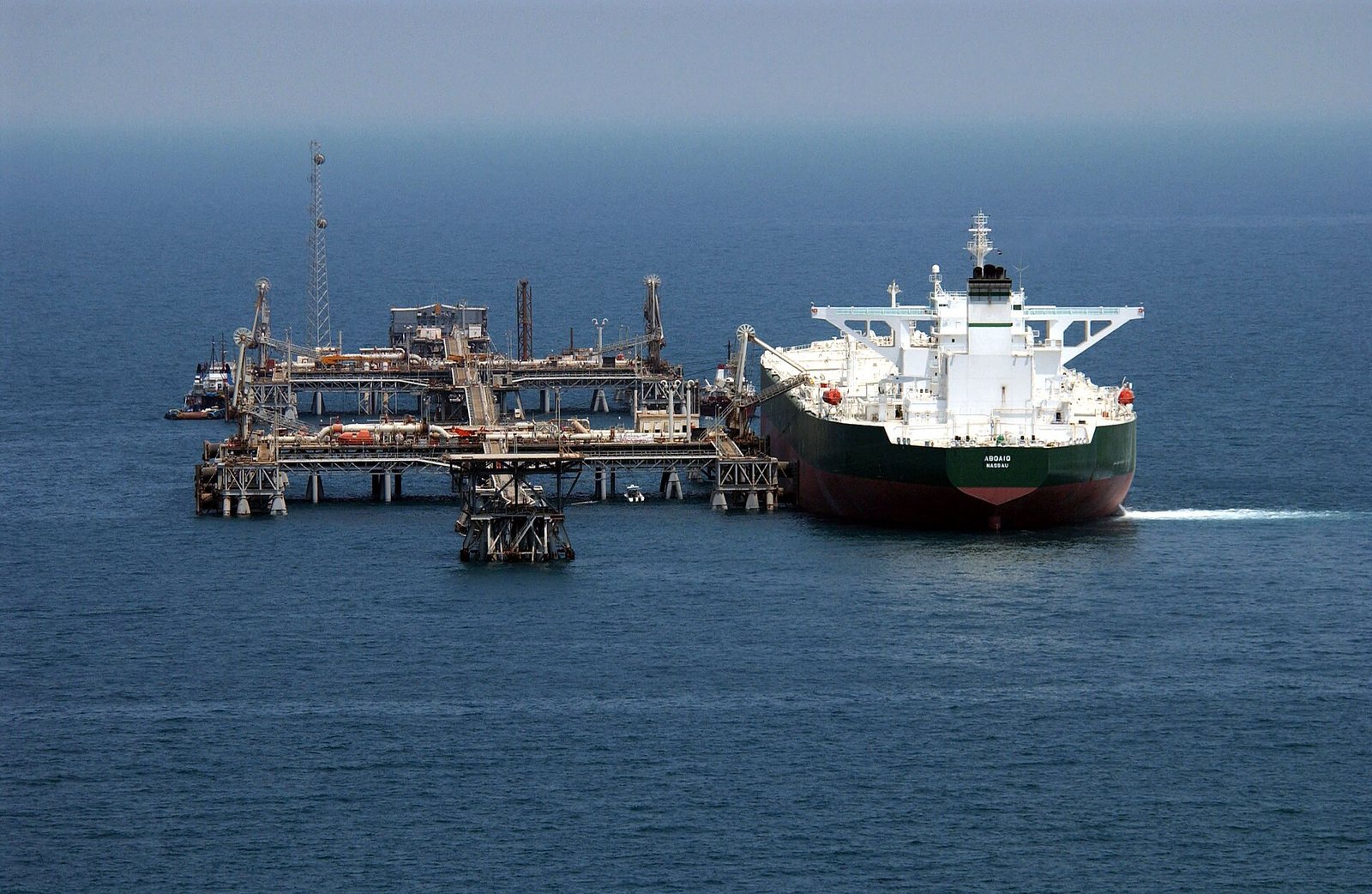

Onto a tanker
Loaded onto a Very Large Crude Carrier, often via a smaller shuttle tanker and a ship-to-ship transfer offshore. Custody passes from the producer to a trader here, and frequently changes hands again at sea.
Why here: A cargo has to leave from the coast it was produced on. Where it goes next is a commercial decision, not a physical one.
United States · US Gulf Coast (or Shandong, or Jamnagar) held by Refiner (Refiner)

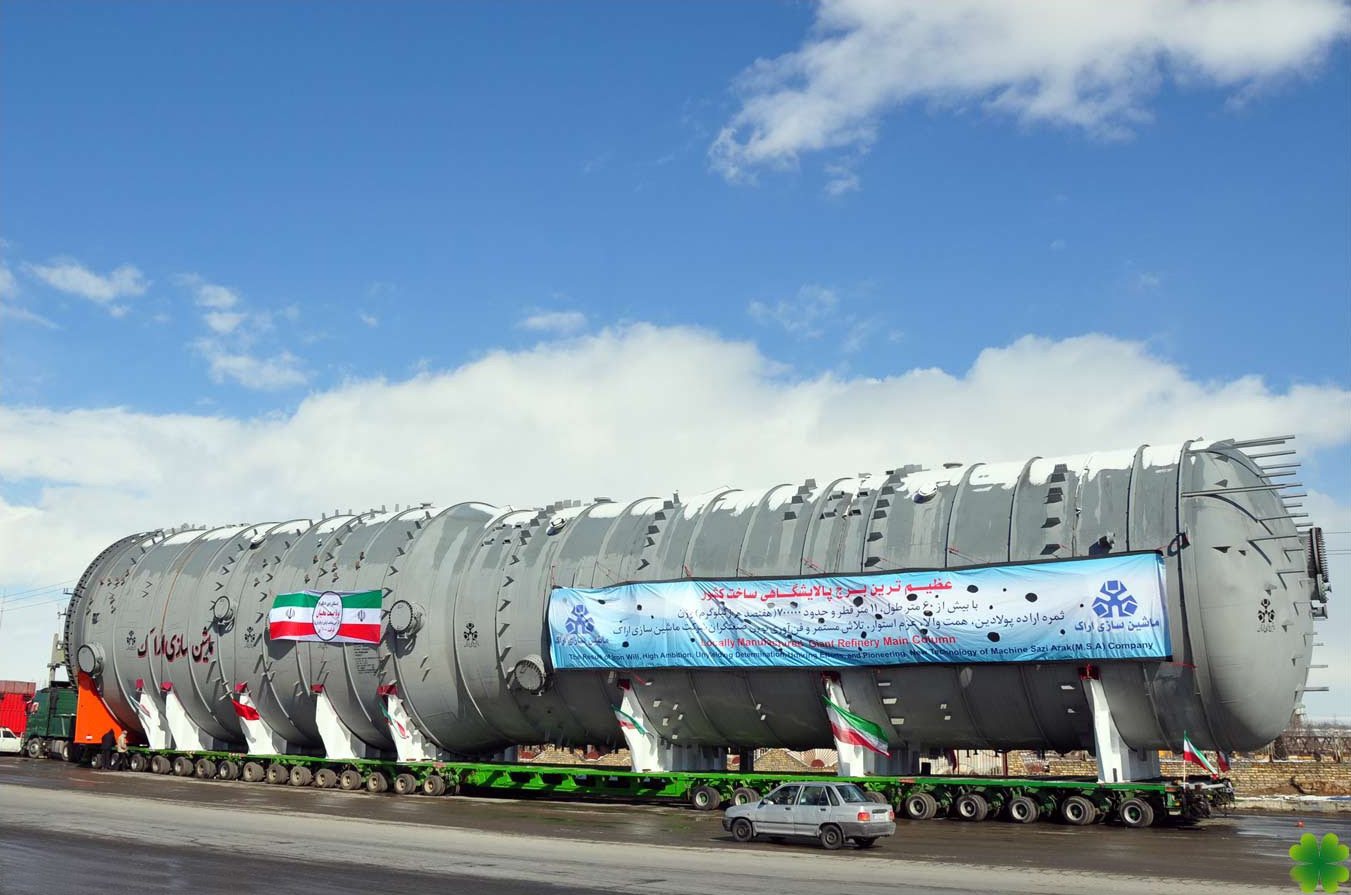

A refinery with a coker
Distillation takes off the light ends. What is left — most of the barrel — goes into a delayed coker, which heats the residue until it cracks into lighter liquids and solid carbon. Hydrotreaters then strip the sulfur out.
What happened to the rest: The diluent is recovered and sent back. Sulfur comes out as elemental sulfur — feedstock for sulfuric acid, which is used to leach other metals elsewhere in this atlas.
Why here: Because the coker is here. Gulf Coast refineries were built to run heavy sour crude and are among the deepest-conversion refineries in the world; a simple refinery in Europe physically cannot process this barrel.
United States · Refinery gate held by Fuel marketers and industrial buyers (Manufacturer)

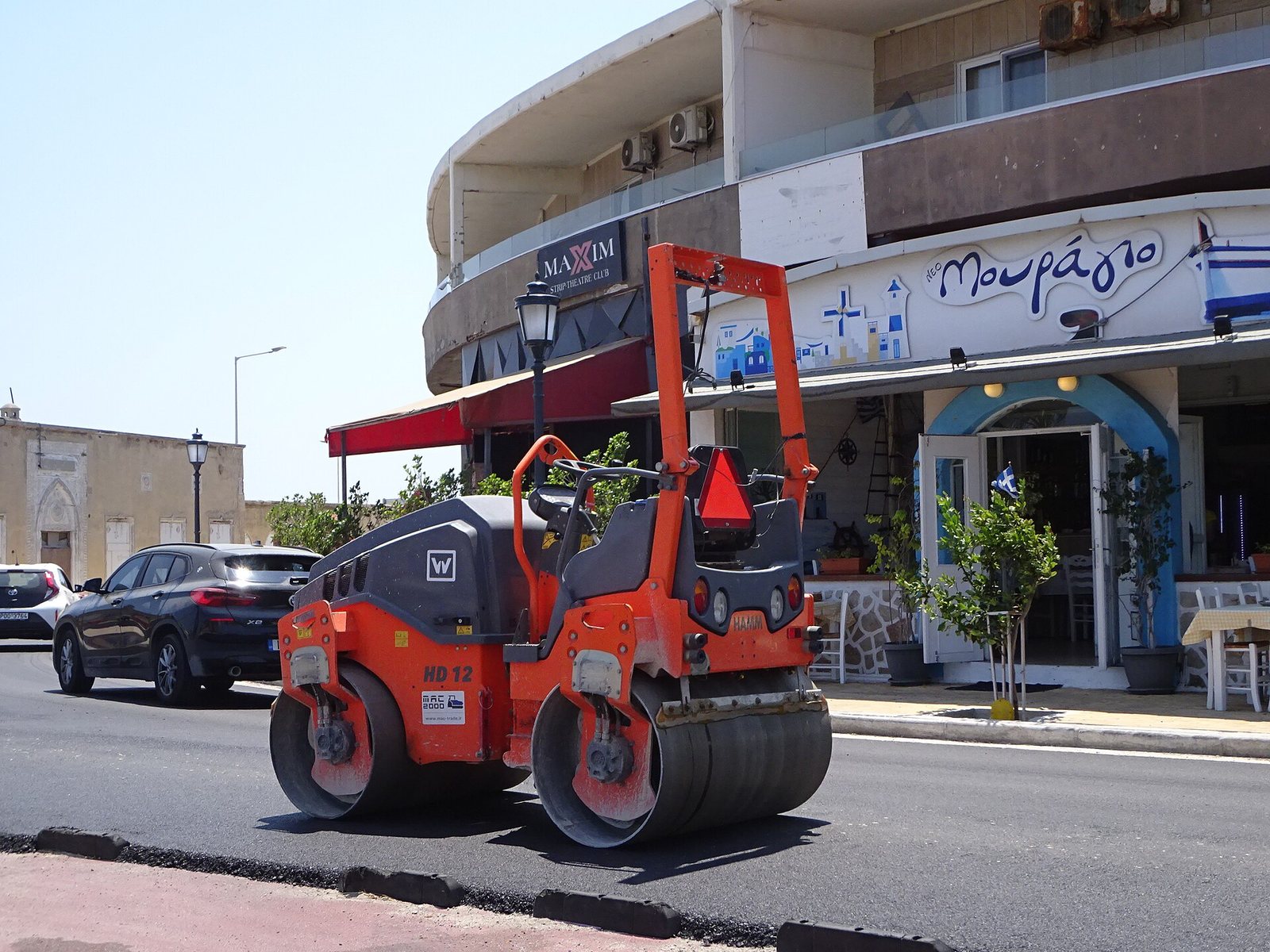

What comes out the other end
Diesel, jet fuel, petrol, asphalt for roads — and roughly 40 tonnes of petroleum coke from the coker.
Why here: Heavy sour crude yields proportionally more asphalt and coke than light crude does. The barrel's chemistry decides the product slate, not the refiner's preference.
United Arab Emirates · Calciner, then a smelter held by Anode and aluminium producers (Manufacturer)

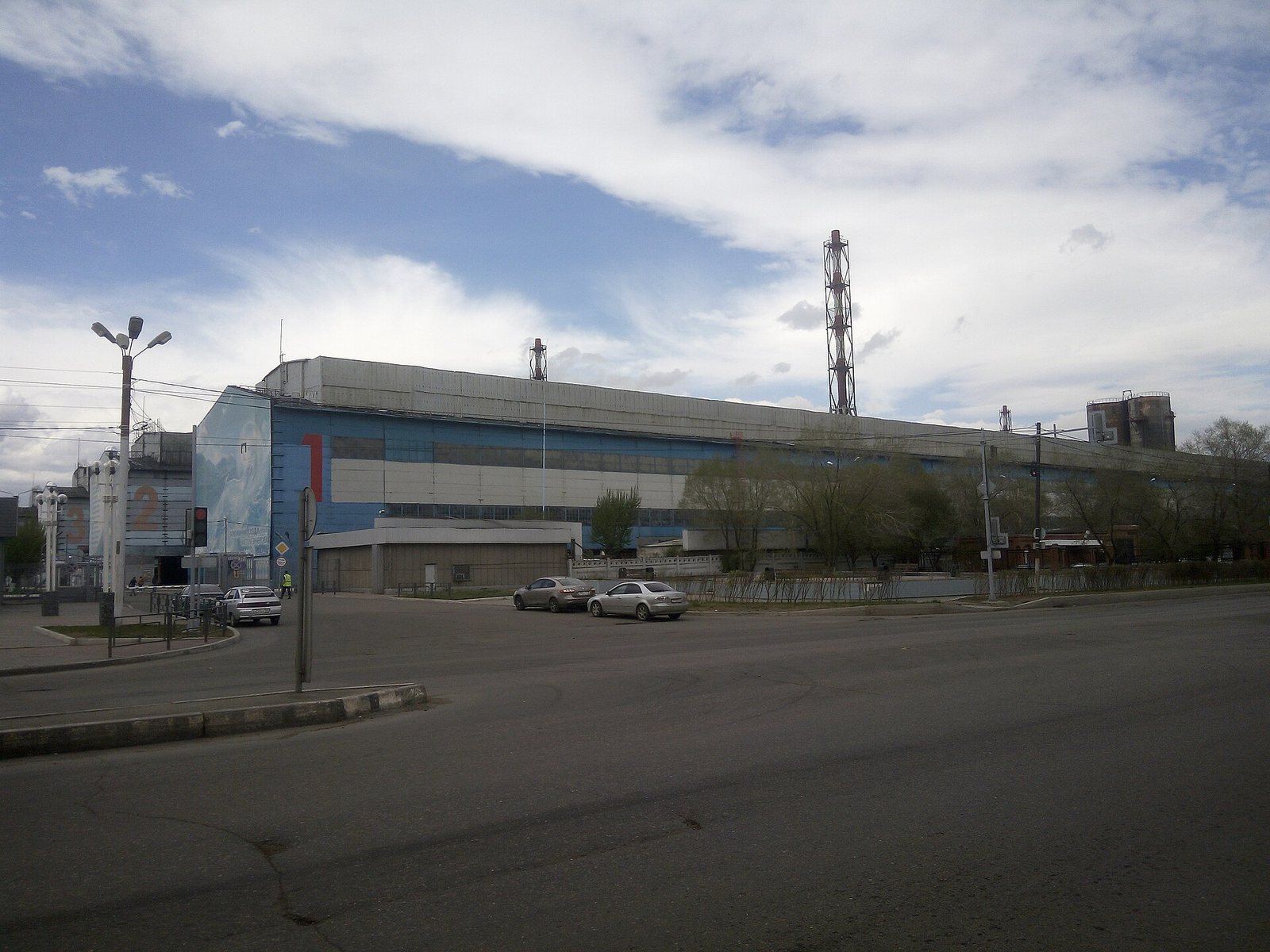

The coke becomes aluminium
The petroleum coke is calcined and formed into carbon anodes. An aluminium smelter consumes roughly half a tonne of anode carbon for every tonne of metal it makes, burning it away in the process.
What happened to the rest: This is the join most people never see: a barrel of Venezuelan tar ends up as the consumable carbon inside an aluminium smelter on another continent.
Why here: Smelters sit where electricity is cheap, which is rarely where the oil was. The carbon travels to the power, not the other way round.
This is a worked example. It follows a stated starting quantity through published typical yields and recoveries, so the proportions are checkable; it is not a record of a specific shipment. Route facts — which countries, which processes, and why the material cannot simply be handled somewhere else — are compiled from public reporting.
